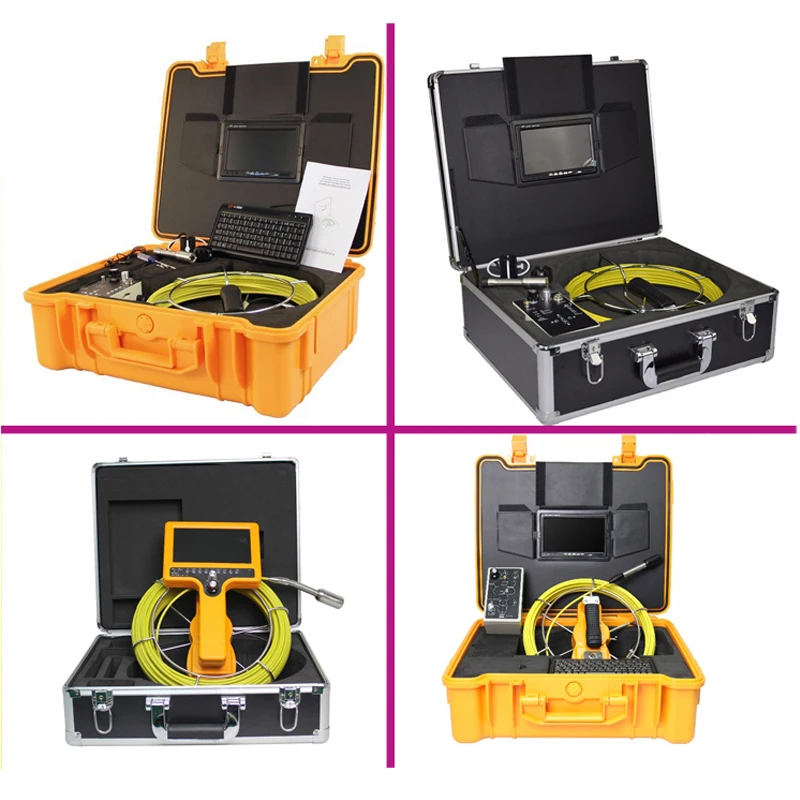

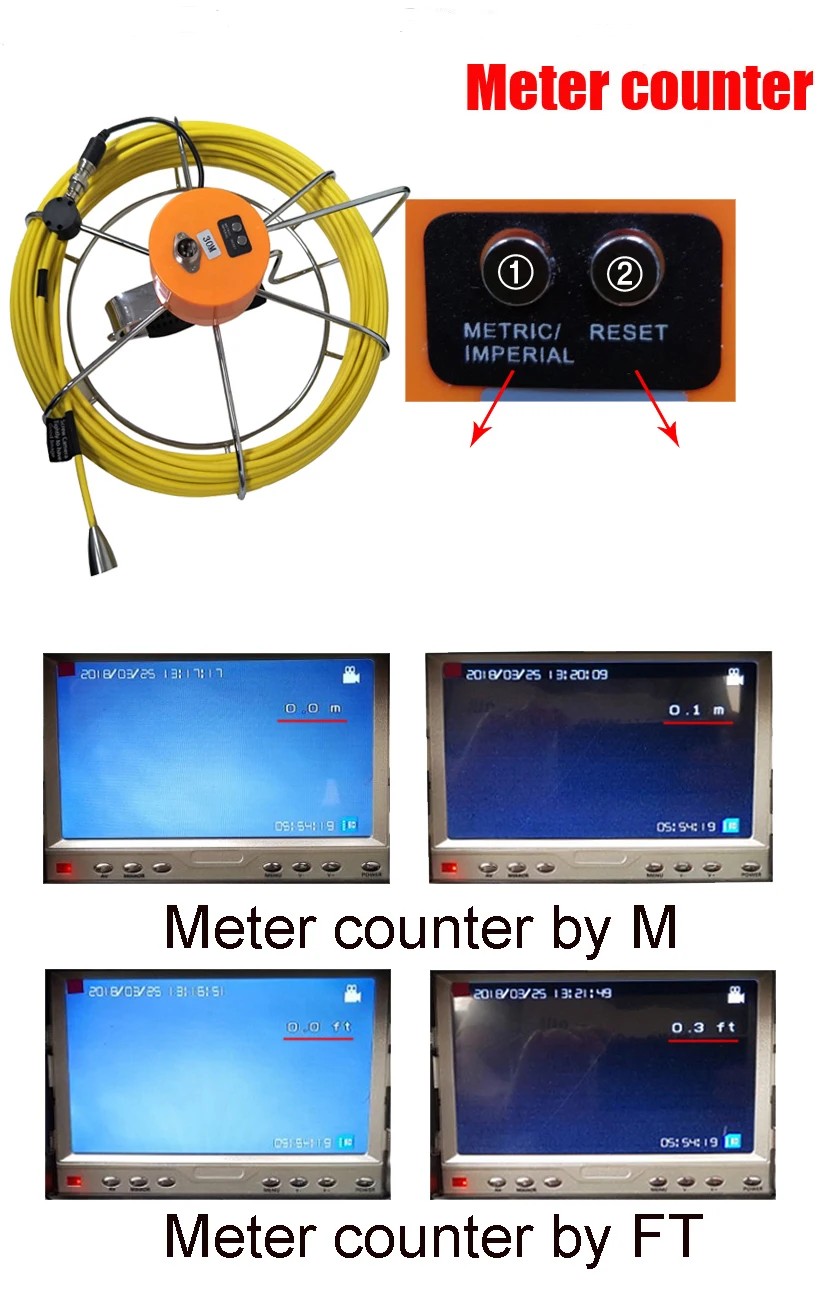

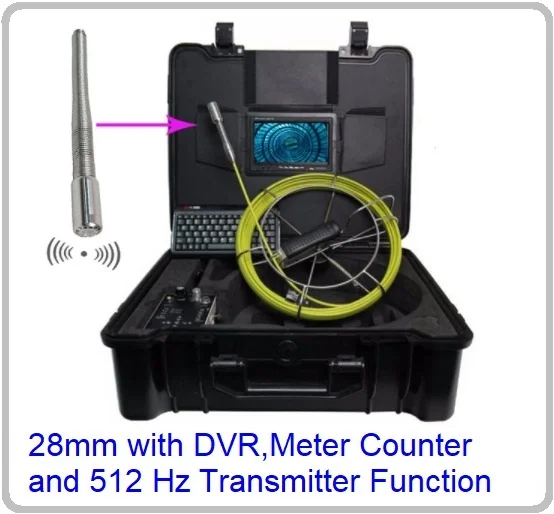

28mm 512Hz Transmitter Auto Self Leveling Pipe Sewer Drain Pipe Inspection Camera with DVR Recorder 7 Inch Monitor Meter Counter
Pipe Camera Sewer 512hz Transmitter Sonde Locating Duct Video Snake Inspection System Kit W/7'TFT Monitor
(2 colors option:Yellow / Black)

Parameter:
ISPLAY: 7 INCH Color LCD
Color SYSTEM: PAL/NTSC
Resolution: CMOS 600TVL
Camera Head: Stainless Steel 304
VIDEO: 1 Camera INPUT/1 VIDEO OUTPUT
POWER Adaptor: AC 110V-240V
WORKING TEMPERATURE: From -10 Degree to 50 Degree
Water Proof Grade: IP68
CAMERA: COLOR CMOS
Cable Length: 20m-50m
POWER CONSUMPTION(W): 14W
NIGHT VISIBILITY: 12 WHITE LED 3M UNDER WATER
VIEWING ANGLE(Degree): 120Degree

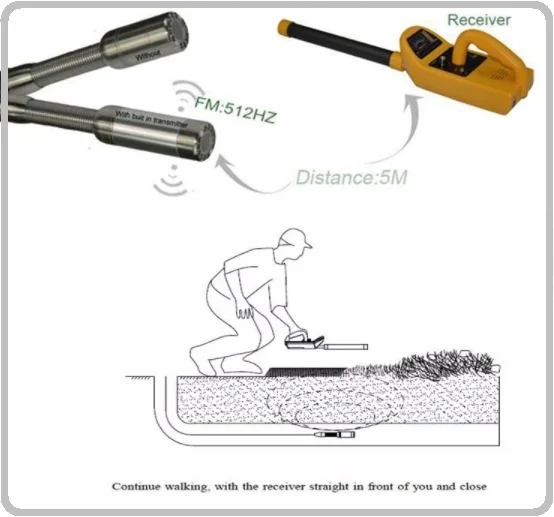

Frequency: 512HZ
Distance: Up to15 foot
Modulation: FM
Tone type: Beeping or Continuous
Camera Head: Stainless Steel 304
VIEWING ANGLE(Degree): 120Degree
Size: 22.5*60MM
Range(cast iron): Up to 10 foot
Range(non-metallic): Up to 15 foot
Minimum line size: 1
Minimum P-Trap size: 2
Thread: Metric 15mm/Pitch 1 mm
Camera specifications:
-

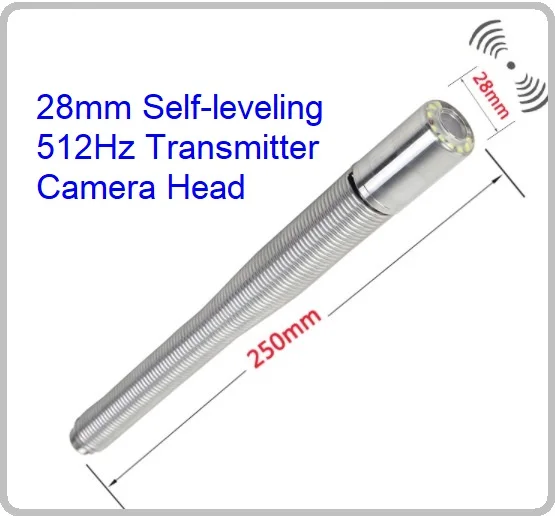

Camera size:28mmx250mm
-
Front size: 45mm
-
Camera case material:stainless steel house stainless steel 304
-
Camera glass material:sapphir glass
-
Sensor size:1/4 inch
-
Total Pixels:PAL:720X576 NTSC: 720X480
-
View angle:120
-
Camera light:12PCS white LEDS
-
Special gold point touch connector
-
Waterproof:IP68
-
Camera work current:100MA
-
Camara power supply:DC 12V
-
LEDS ADJUASTABLE
-
Working temperature:-10-5
Batter, y:
SKIDS size:
-
SKIDS1: 40MM
-
SKIDS2: 80MM

Scene Display:

Complay Strength:
|
